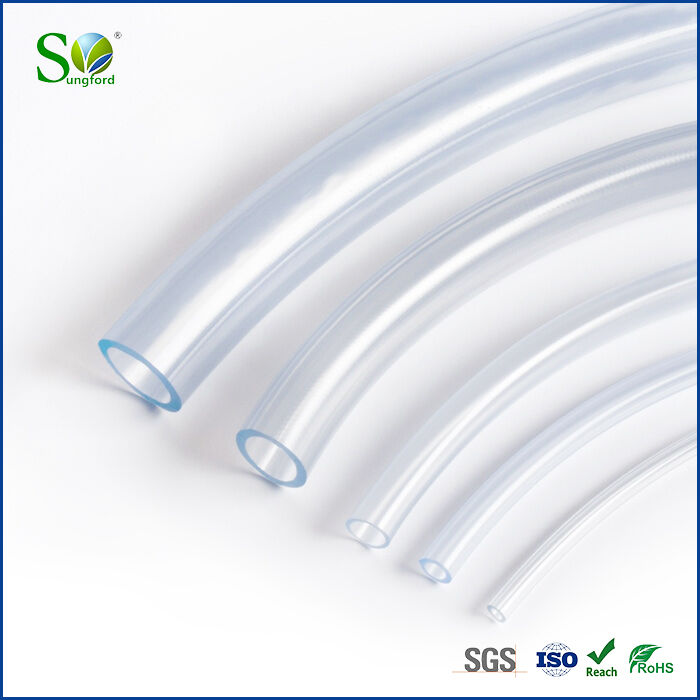

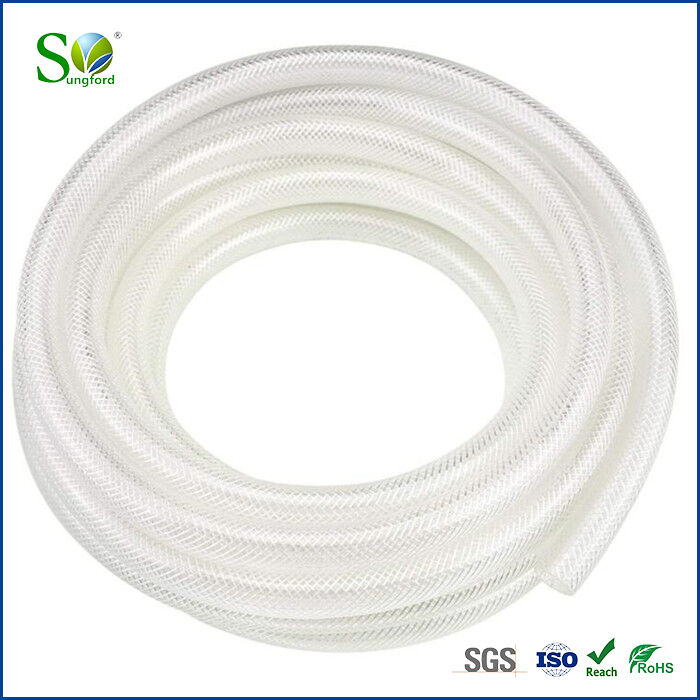

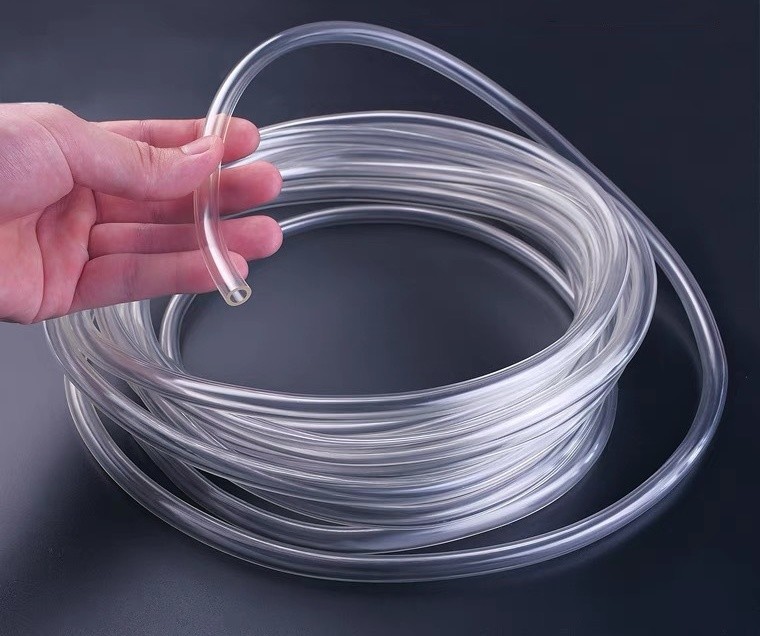

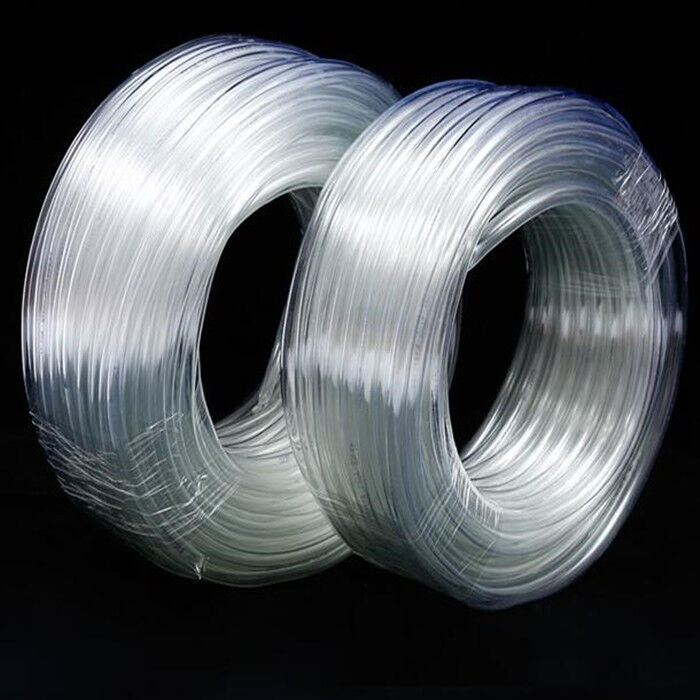

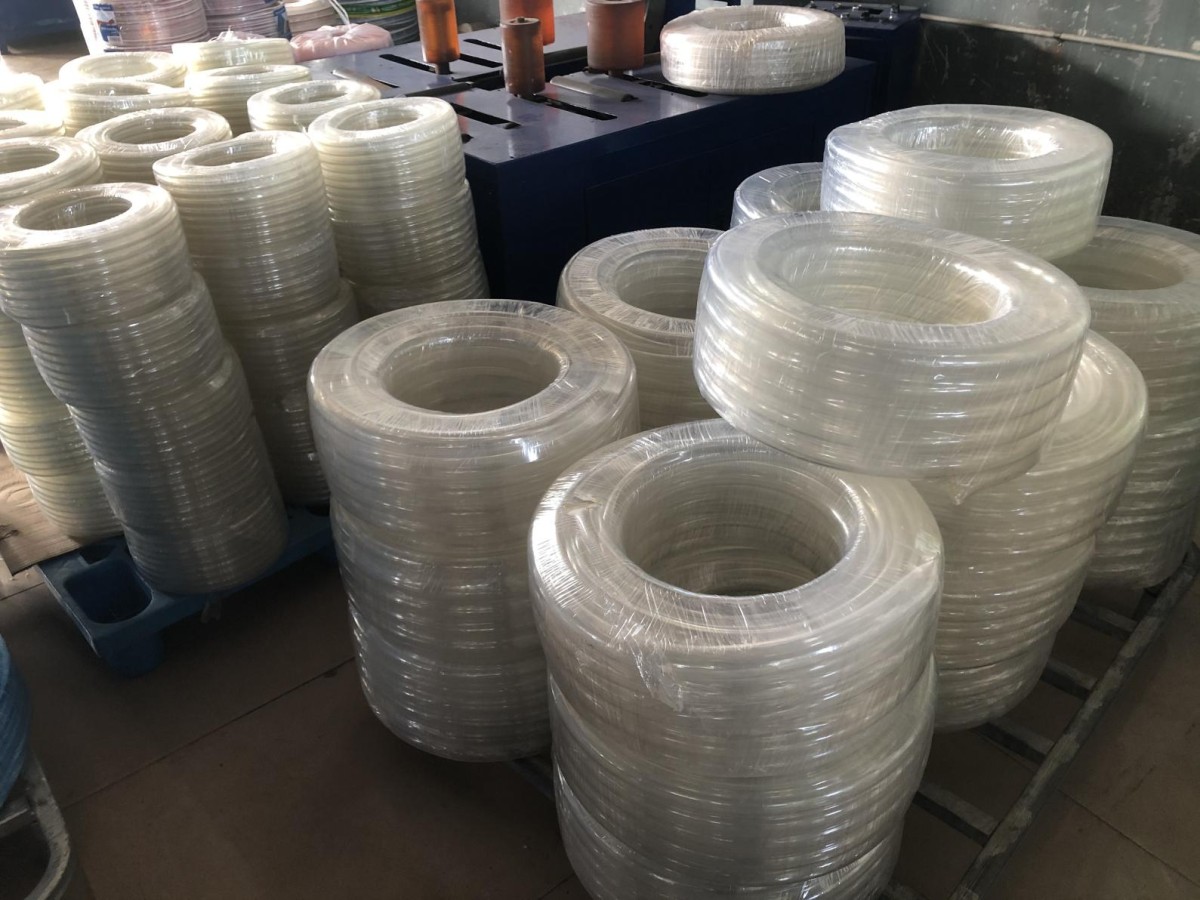

Food Grade Clear Vinyl Tubing
Food Grade Clear Vinyl Tubing is made from Phthalate Free PVC compound which is specially designed for food industry such as milk,wine,beverage,etc. The crystal clear PVC wall makes it excellent vision to the medium in the hose and the smooth wall inside make the medium delivery very smoothly and no block and conglutination.
Inquiry
Product Details
Video
Inquiry

Food Grade Clear Vinyl Tubing is made from Phthalate Free PVC compound which is specially designed for food industry such as milk,wine,beverage,etc. The crystal clear PVC wall makes it excellent vision to the medium in the hose and the smooth wall inside make the medium delivery very smoothly and no block and conglutination.


As a professional manufacturer and supplier, we warmly welcome your inquiry and hope to be your reliable partner.



Quick Details


MaterialPhthalate Free Food Grade PVC
TubeCompounded from non-toxic crystal clear PVC ingredients, formulated to meet applicable FDA,
USDA, 3A, and NSF regulations
CraftExtrusion
ColorCrystal clear
Hardness50-80shore A
Thickness1mm to 6mm
Inner Diameter3mm-50mm
Gravity1.3g-1.5g/cm3
working Temperature• +25°F to +150°F
Flammability(UL94)94v-0/ 94v-1/ 94v-2/ 94HB(optional)
AdvantageResistant to abrasions and corrosion,outstanding clarity,Excellent aging resistant
Quality GradeFood Grade Hose
Applications:• Food & Beverage• Water Distillation lines and deionized water systems• Air conditioning and refrigeration drainage• Sight gauge and drain lines• Transfer of weak chemicals and acids


Specifications


Customers usually send us their own thickness for weight kg/m for customization.


Nominal DimensionSizeLengthW.P.B.P.WeightVolume
lnchI.D. mmO.D. mmMBarBarKg/RollM3
1/8”36100262.80.01
1/4"681001.5530.015
5/16"8101001.543.80.019
3/8"10121001.544.70.026
1/2"121550144.30.019
5/8"151850135.20.03
3/4"192250136.50.03
1"2530501314.60.068
1-1/4"3238401317.80.113
1-1/2"3844401320.80.15
2"50584012.536.60.262


Food Grade Clear Vinyl Tubing Features

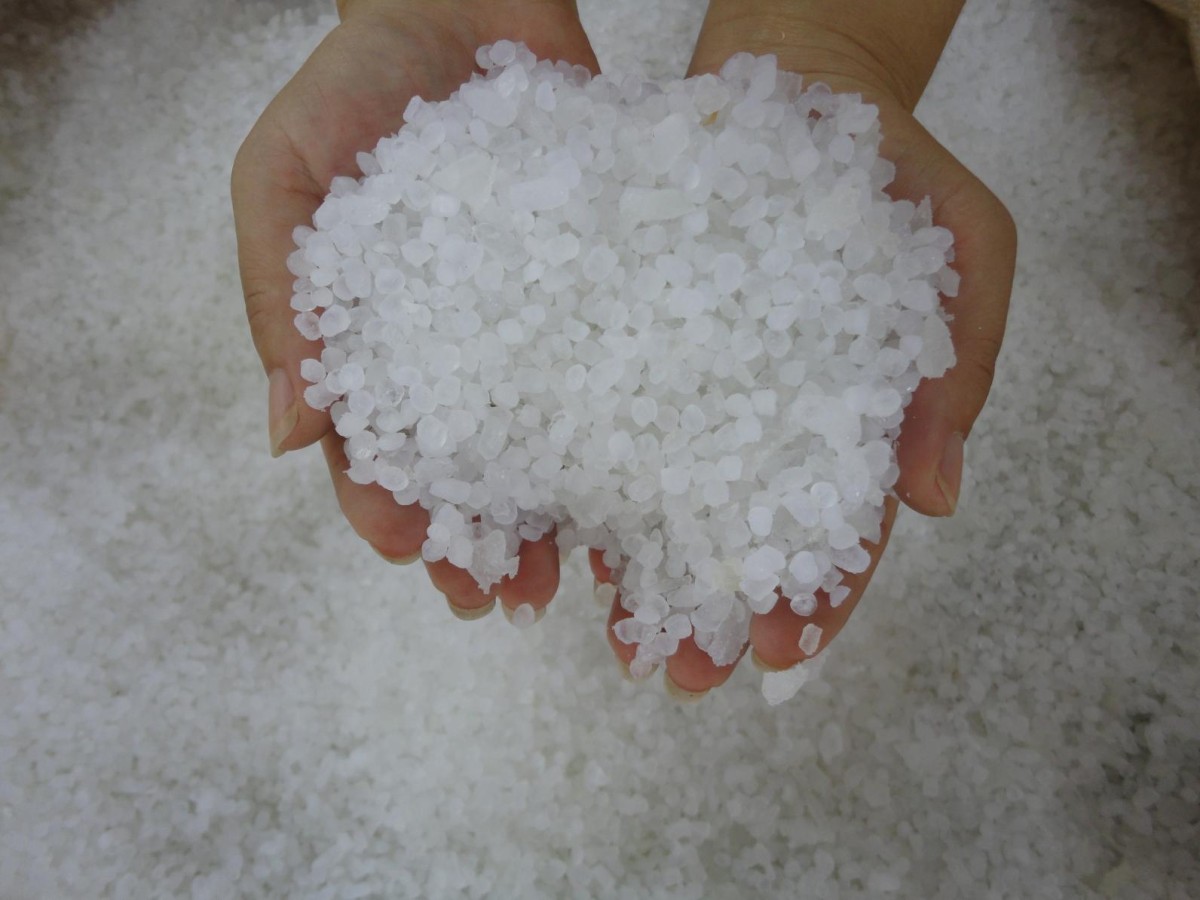

- New environmental protection type ATBC material.

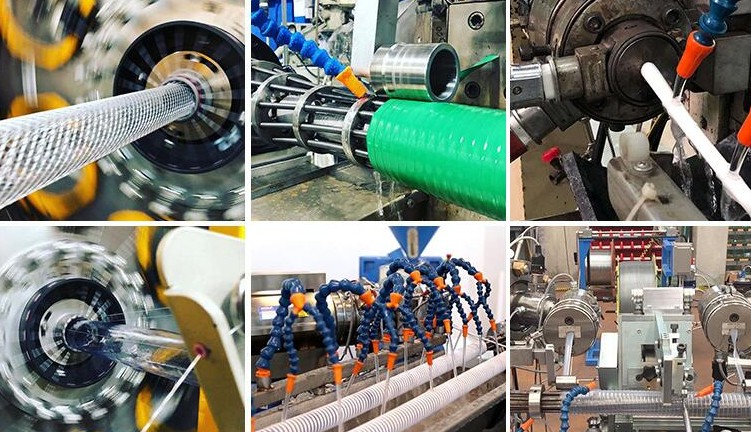

- Separate granulation and extrusion on special machines.

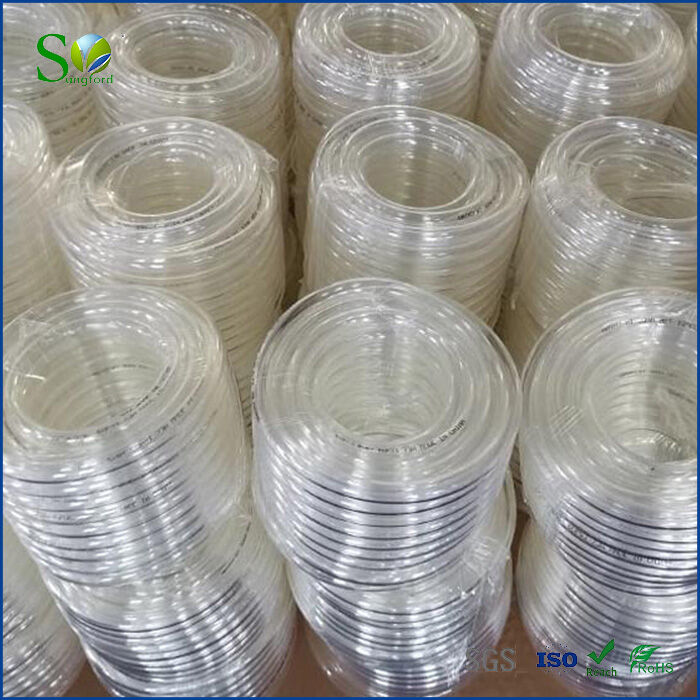

- Food grade plastic film for packing.

- Support for third-party detection.

- With ROHS and FDA certificate from SGS for food application.

- Quality control- Special QC team, each packing with marked worker number.

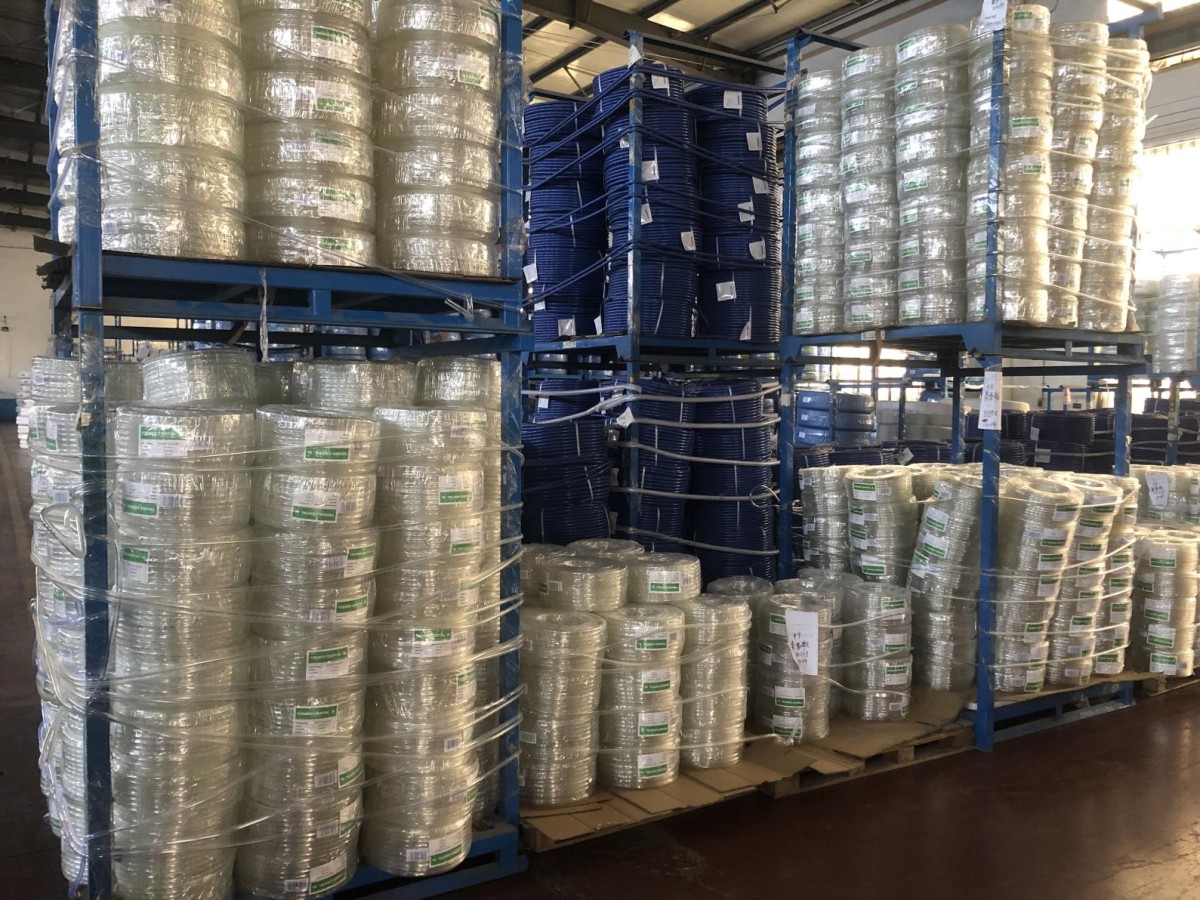

Delivery


Port of loading: Qingdao
Lead Time: 15days for 1x 40HC
Samples: always available for free
