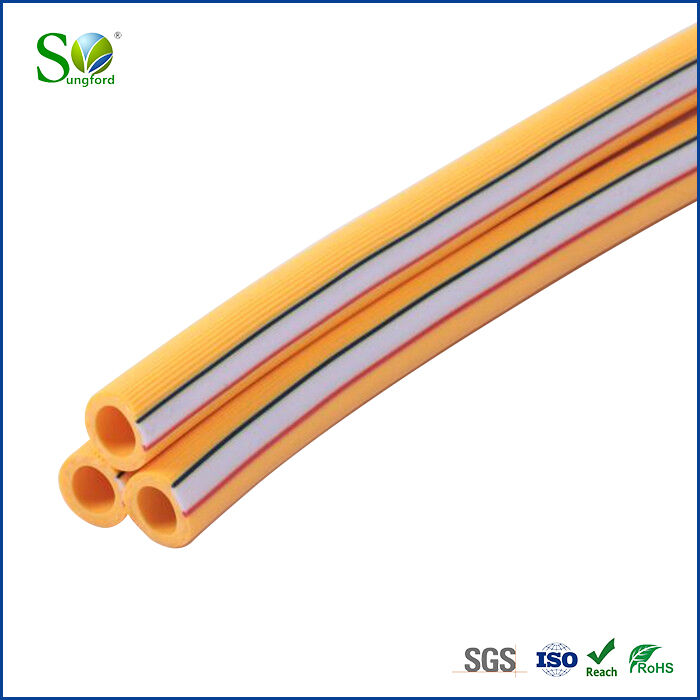

PVC High Pressure Spray Hose
PVC High Pressure Spray Hose is also named agricultural spray hose, agricultural chemical hose, sprayer hose, herbicides spray hose, pesticides spray hose, etc. Which is an ideal hose designed for high pressure spray or transfer of various fluids in many applications.
Inquiry
Product Details
Video
Inquiry

PVC High Pressure Spray Hose is also named agricultural spray hose, agricultural chemical hose, sprayer hose, herbicides spray hose, pesticides spray hose, etc. Which is an ideal hose designed for high pressure spray or transfer of various fluids in many applications.



Quick Details


  Product AdvantagesKorean technology with premium and stable qualityUsageAgricultural SprayingHose for Sprayer
Factory price, more competitiveMain MaterialPVC+Polyester Yarn
50 production lines,Quick delivery timePackingCarton /Film /Card
More than 16years production experienceBurst Pressure
Max 100bar (1450psi)
Stronger,Lighter,higher working pressure, non knottingDelivery Time10-30days(depends on the order quantity)
OEM availablePort Of LoadingQingdao,China
Characteristics1.Economical, flexible, lightweight alternative to rubber hose.2. High strength polyester yarn to ensure resistance to high pressure, burst pressure for full braiding spray hose can be 300 bar.3. Durable and adaptable to hard weather conditions, with a long service life.4. Non-marking PVC cover with different colors available.

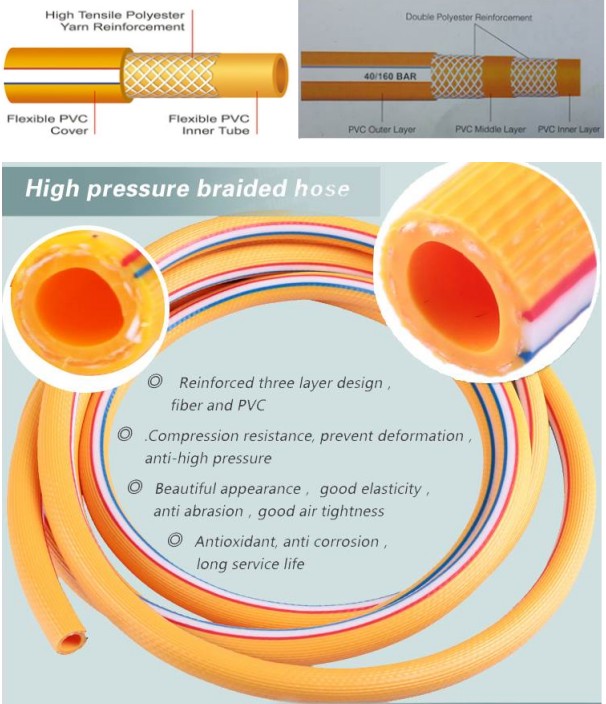

Construction


Cover&tube : High-density PVC material
Reinforcement: 1 layer or 2 layers polyester reinforcement, or full braiding high-strengthened polyester yarn reinforcement.
Wall Thickness: As customer requirements

Working pressure: 20-100bar (300psi-1450psi)

Burst pressure: 60-300bar (900psi-4350psi)

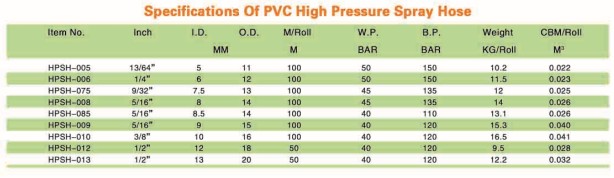

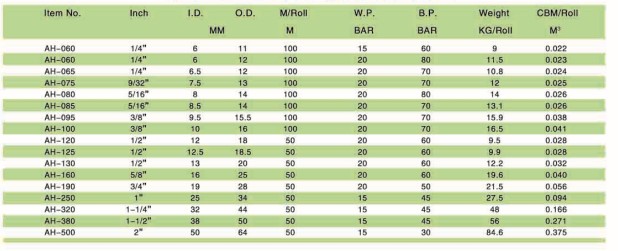

Specifications


According to different layers polyester reinforcement, the tubing includes 3layers (W.P 20BAR), 5layers(W.P40BAR) and full braiding hose (W.P60-100bar) for customer choice.

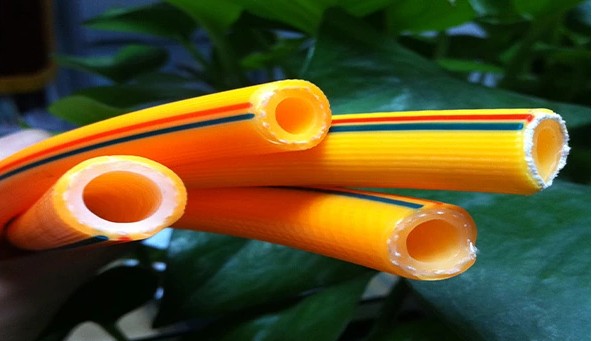

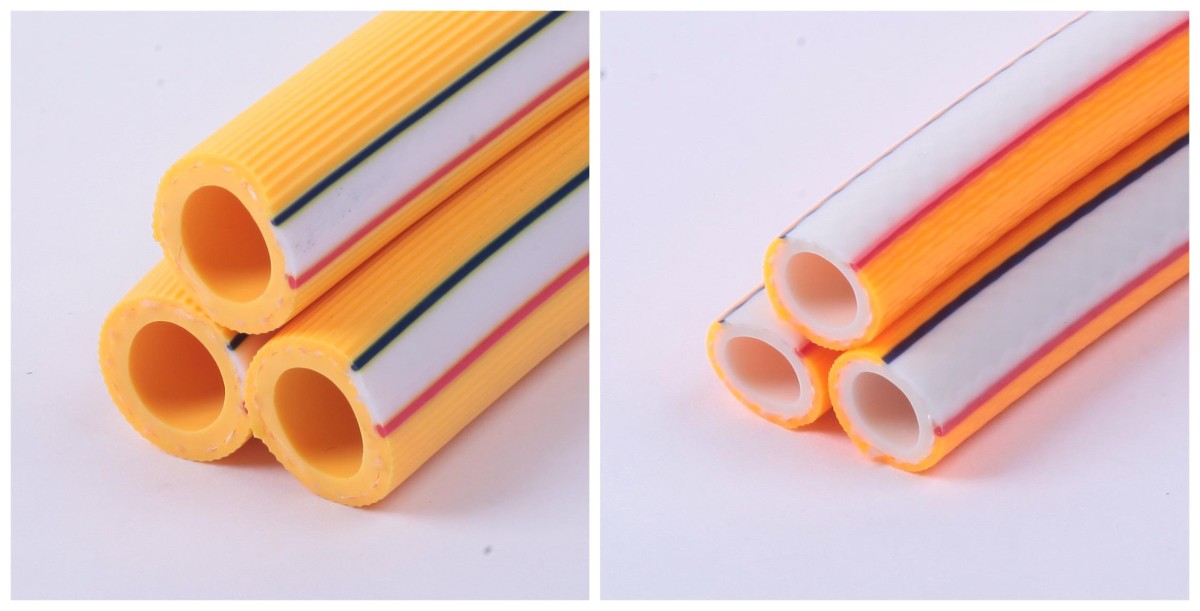

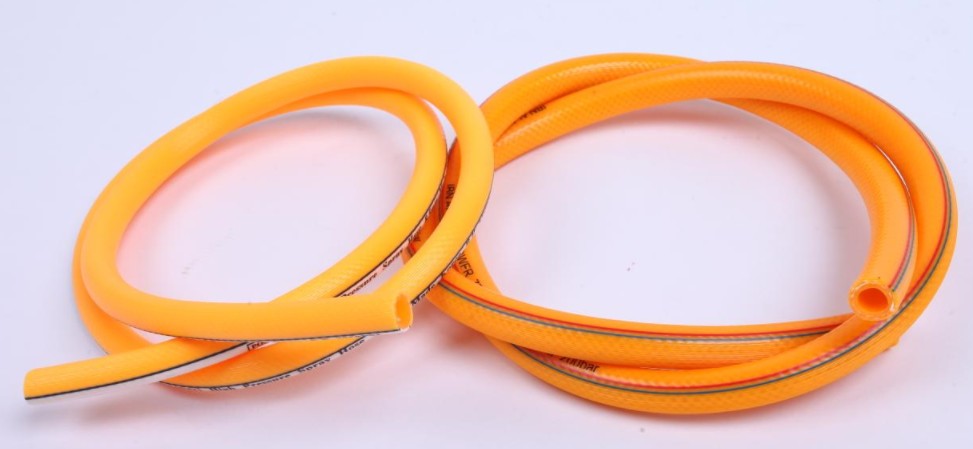

Single braiding PVC high pressure spray hose



Double braiding PVC high pressure spray hose


5layers spray hose is composed of double polyester and three PVC layers, light weight, corrosion resistance,
anti-bending, much higher pressure than 3 layers spray hose.Widely used for spraying chemical of farmland,orchards and vinyl plastic warmhouse, this hose is flexible.

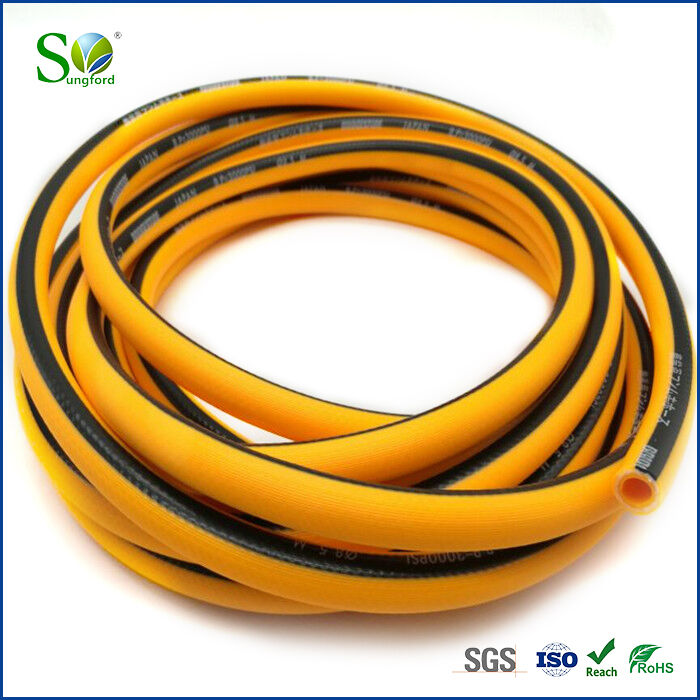

Full braiding PVC high pressure spray hose

This tubing is full braiding by strong polyester with working pressure 50-100bar and max burst pressure 300bar.


Applications


The hose is widely used in high pressure washer, air compressors and pneumatic tools.
In agriculture,it is mainly is used for spraying of pesticide,fungicide,fertilizer solution.

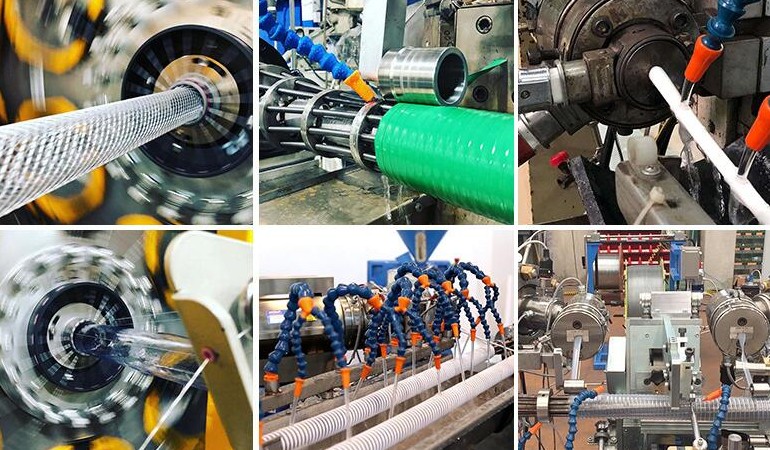

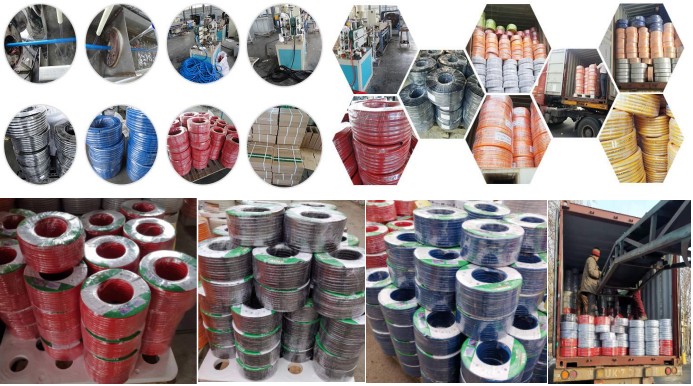

Production And Packing


This pressure spray hose are wrapped by plastic film or woven cloth and be fixed with ropes or packing straps.
Colorful paper card, carton, paper rolls, etc.
Detailed packing can be according to your requirement.



About Us


SUNGFORD plastic is a professional manufacturer and exporter for type of PVC Hose in China, including PVC lay flat hose, braided hose,pressure hose,steel wire hose, suction hose etc, More than 70% of hoses are exported to all over the world. The certificate includes ROHS, SGS, ISO9001, ISO14001, REACH, FDA, etc.
We can can make any test as customer request and OEM is always available.
