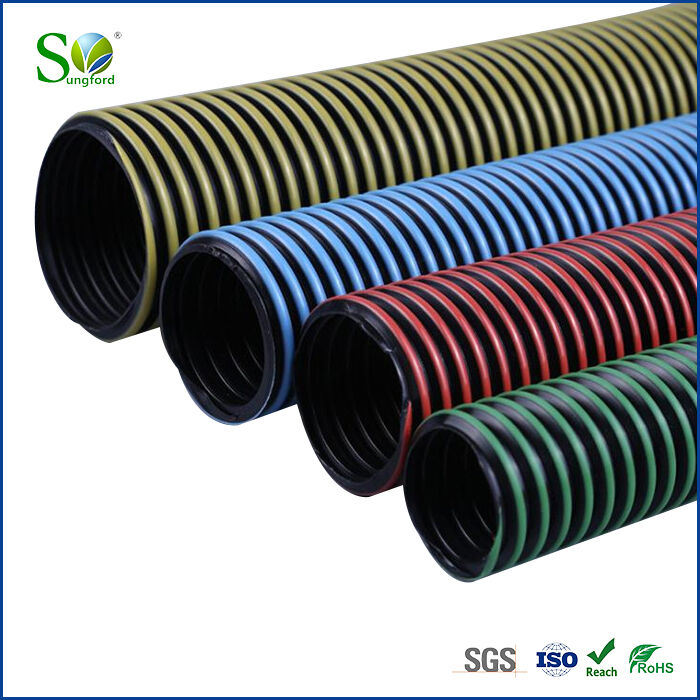

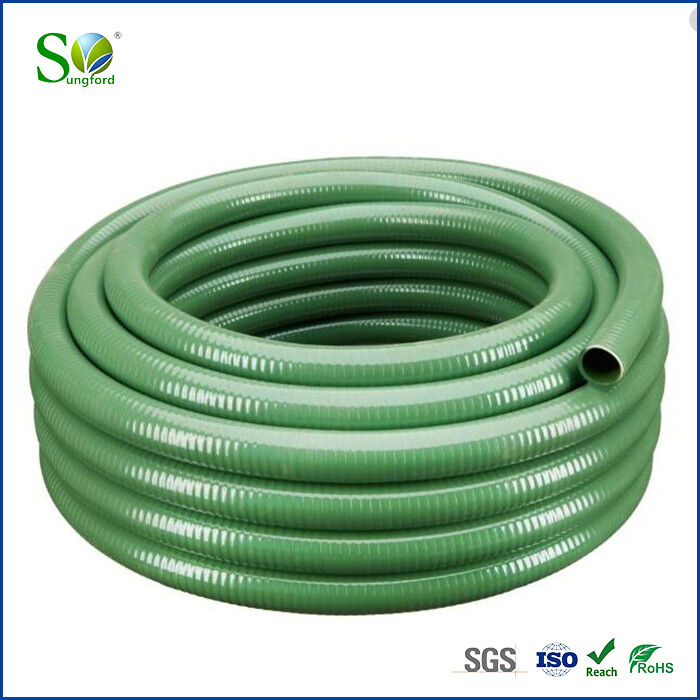

Oil resistant PVC suction hose with rigid PVC helix construction, made with special oil resistant compounds which exhibit medium resistance to oil and other hydrocarbons. Itsconvoluted outer cover also provides increased hose flexibility.
| Material | Oil resistance formula materials for 3 months,1year and 5 years. |
| Construction | High quality PVC with rigid PVC helix |
| Usage | Specially designed for conveying oil and hydrocarbon in factory,mine,oil field,etc. |
| Coupling | Camlock coupling and clamps are available separately or assembly with hose |
| Advantage | Designed to handle gasoline, diesel and other oilAnti-abrasion,anti-corrosion,anti-aging and chemical resistance. Super flexible,small bending radius,light weight and heavy duty for choiceSmooth inner construction for unrestricted flow of materials |
| Temperature | -30℃(-22℉) to 65℃（+150℉） |
| Place of origin | WEIFANG,CHINA |
| Port of loading | QINGDAO |
| Other | Factory export directly with very competitive prices |
Specifications
Customized thickness or weight kg/m is always the most popular.
| Size Inch | ID MM | OD MM | WP BAR | BP BAR | Length m/Roll | Weightg/M |
| 3/4“ | 19 | 25 | 8 | 24 | 30 | 280 |
| 1” | 25 | 31 | 8 | 24 | 30 | 350 |
| 1-1/4" | 32 | 40 | 8 | 24 | 30 | 500 |
| 1-1/2" | 38 | 48 | 8 | 24 | 30 | 750 |
| 2" | 50 | 58 | 7 | 21 | 30 | 920 |
| 2" | 50 | 60 | 7 | 21 | 30 | 1050 |
| 2-1/2" | 63 | 73 | 6 | 18 | 30 | 1300 |
| 3" | 75 | 85 | 5 | 15 | 30 | 1650 |
| 3" | 75 | 87 | 5 | 15 | 30 | 1900 |
| 4" | 100 | 112 | 5 | 15 | 30 | 2900 |
| 4" | 100 | 114 | 5 | 15 | 30 | 3200 |
| 4" | 100 | 116 | 6 | 18 | 30 | 3700 |
| 5" | 125 | 139 | 4 | 12 | 20 | 3600 |
| 5" | 125 | 141 | 4 | 12 | 20 | 4000 |
| 6" | 152 | 170 | 4 | 12 | 10 | 7200 |
| 6" | 152 | 174 | 5 | 15 | 10 | 8000 |
| 8" | 200 | 216 | 3 | 9 | 10 | 6700 |
Production And Sales
- 100% new original raw materials.
- More than 50 production lines for all types of PVC hose,more than 200 workers and 45 technicists.
- As a professional PVC suction hose manufacturer&supplier for years since 2005,export since 2008.
- 70% of Products are being exported to more than 40 countries over the world.
- Welcome to wholesale bulk PVC hoses with competitive prices and premium quality.
- Welcome to visit us !
