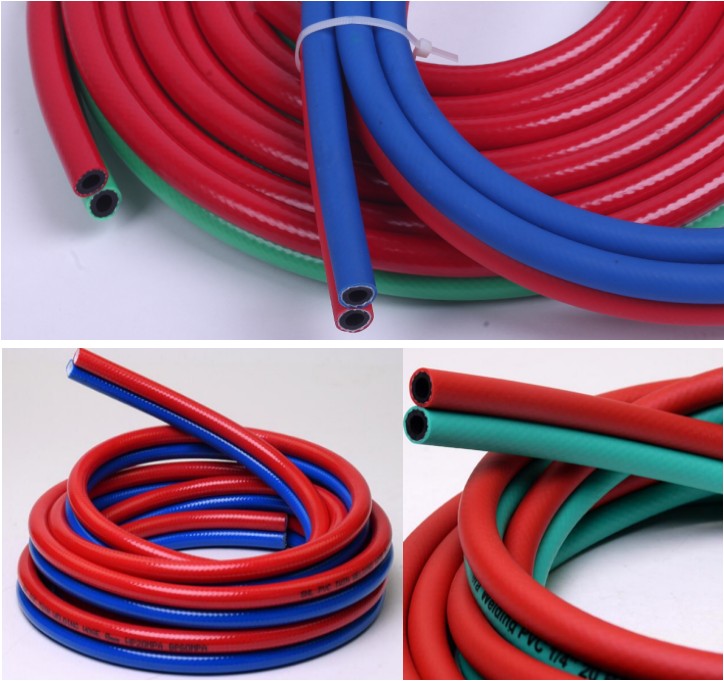

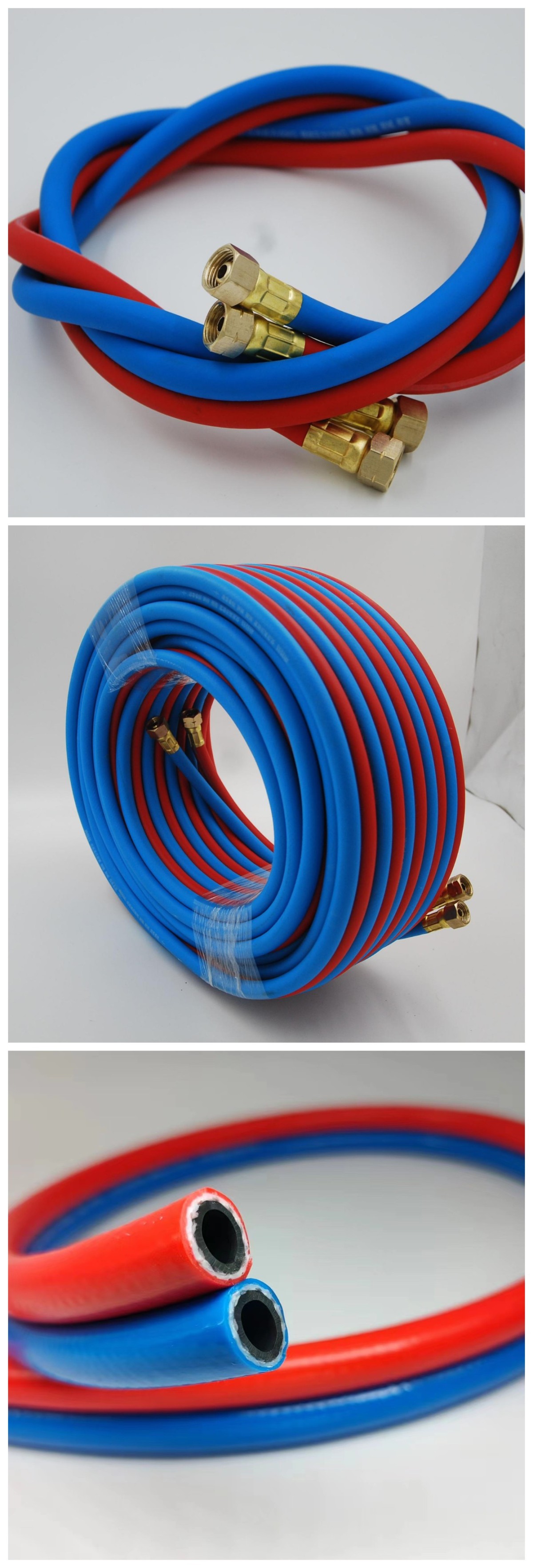

Oxygen Acetylene Welding Hose is double line hose which is a great choice for oxygen and acetylene fuel welding applications. The rayon and PVC construction provides both strength and flame resistance. This handy hose comes with connections to fit all makes of torches and regulators.

OEM & ODM Production

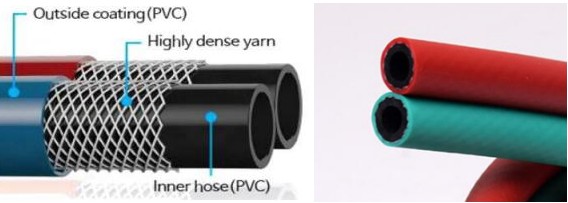

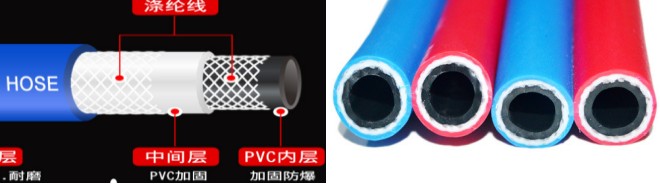

Construction

Inner layer: PVC material or PVC&Rubber
Middle layer: Reinforcement with high strength polyester fiber thread/textile
Outside layer: Compound material of rubber and plastic

Product Classification

3 layers Oxygen Acetylene Welding Hose

2 layers PVC with 1 layer polyester yarn reinforcement,and working pressure is 300psi.

5 layers Oxygen Acetylene Welding Hose

3 layers PVC with 2 layer polyester yarn reinforcement,and working pressure is 600psi.

Product Features

Light weight and easy to carry,low cost than rubber welding hose.Excellent anti-abrasion against L.P.G Acetylene, Oxygen gas.Double line hose resists kinking and twisting.Quality manufacture - made in the China, more than 15 years production experience.Excellent weather resistance and no cracking phenomenon is in direct sunlight like a rubber hose.

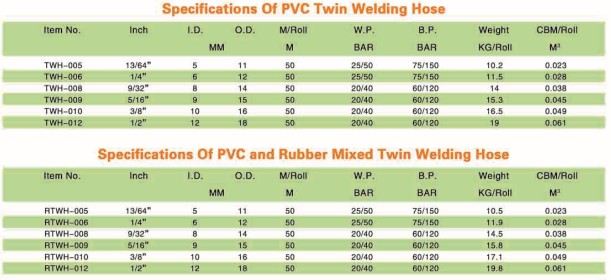

Specifications

1 layer and 2layers reinforcement for choice with working pressure 20-40bar.
PVC material and PVC&rubber mixed material for choice.

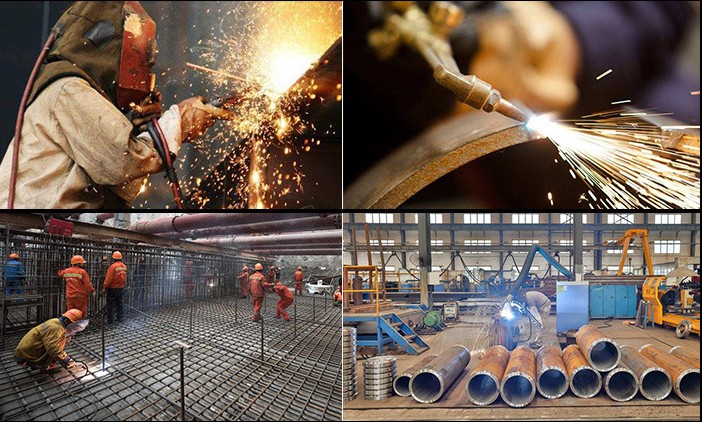

Applications

Specially constructed from high density PVC for long lasting durability in all oxygen-acetylene welding, brazing, soldering and cutting operations.
Green hose: For transporting oxygen or with air for welding and cutting, for arc welding using shielding gas and related processes.
Red hose: For transporting acetylene, also suitable for hydrogen, coal gas and carbon dioxide, argon, nitrogen for welding and cutting (suitable for LPG, MPS and CNG).
Safety pressure factor: 3:1

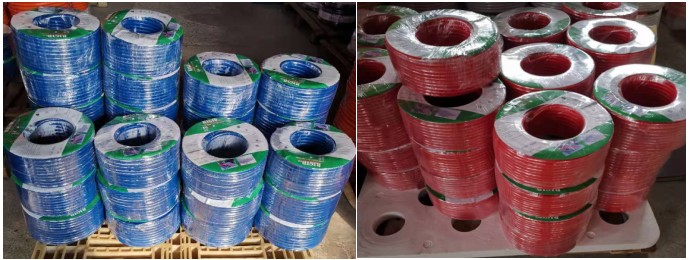

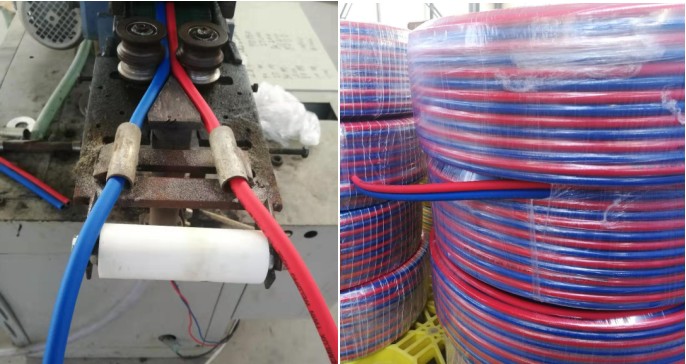

Packing And Shipment

Normal packing: woven bags or plastic film or customized label and paper card for single Oxygen hose or Acetylene hose.

Customized packing with customers’ logo and printing
Loading Port: Qingdao
Trade terms: FOB,CFR
Loading port: Qingdao,China,150km away from factory
Lead Time :Within 15 days after advance payment for full 1x20ft container.
