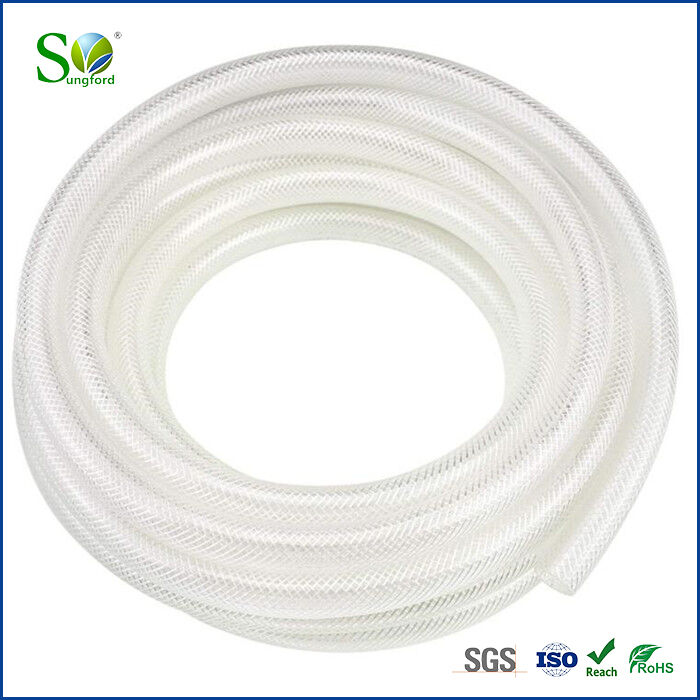

PVC Fiber Reinforced Hose

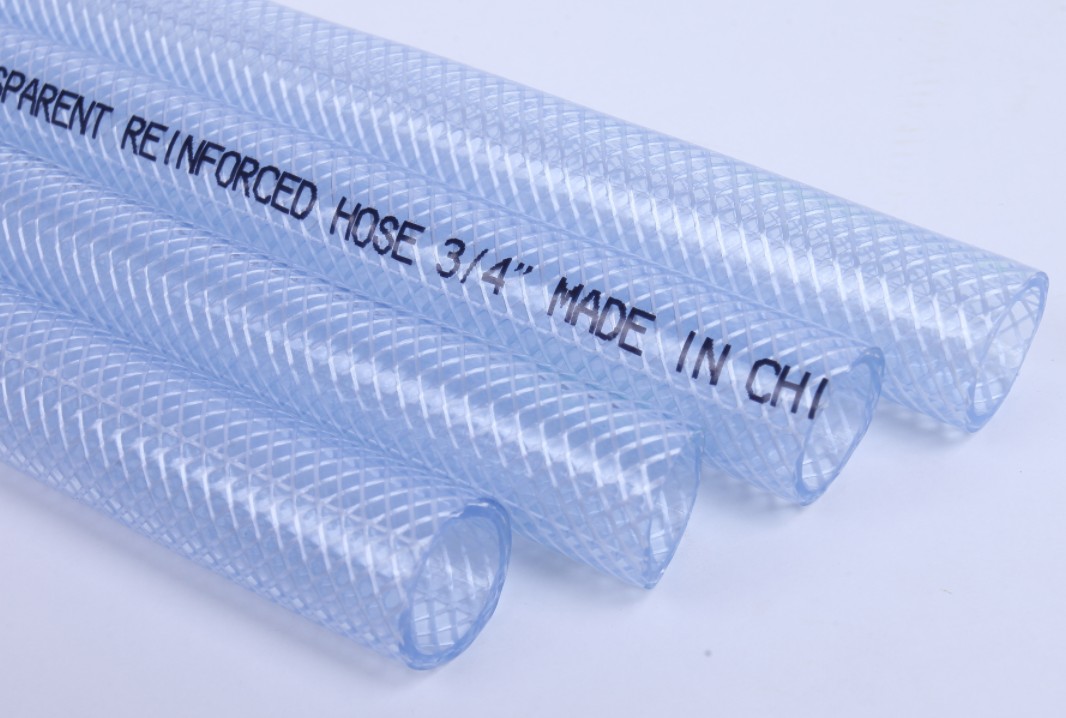

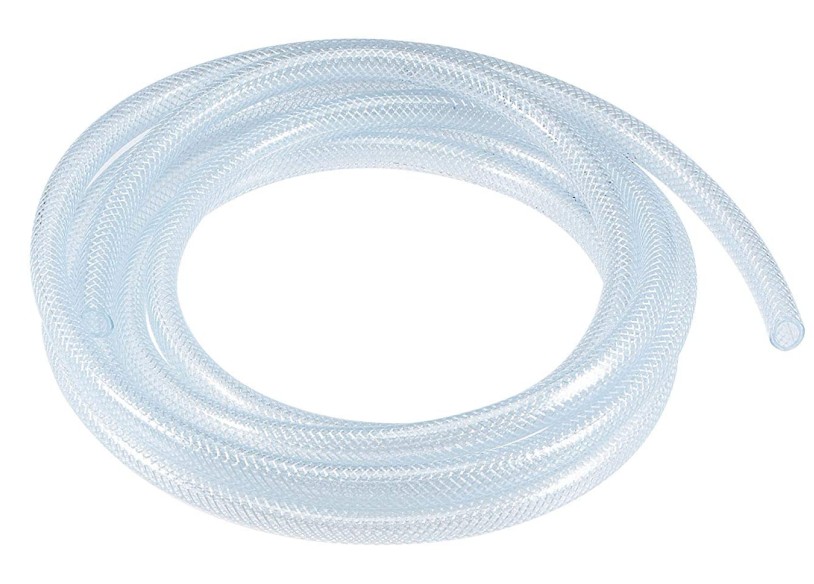

PVC Fiber Reinforced Hose is made of 100% new original flexible PVC material with polyester braiding crossways to make good working pressure, this tube is compatible with a wide variety of chemicals, gases, and liquids,Withstands 3X the working pressure of single wall PVC tubing, a highly versatile flexible tubing that is widely used in many industries.
Inquiry
Product Details
Video
Inquiry

PVC Fiber Reinforced Hose is made of 100% new original flexible PVC material with polyester braiding crossways to make good working pressure, this tube is compatible with a wide variety of chemicals, gases, and liquids,Withstands 3X the working pressure of single wall PVC tubing, a highly versatile flexible tubing that is widely used in many industries.



As one of the most professional PVC Hose manufacturers and suppliers for years in CHN. Types of tubing are exported to many distributors in more than 50 countries and get good feedback and reputation. Your inquiry will be warmly welcome and free samples are always available.


OEM & ODM Production



Quick Details


Type/Alias/Key wordsPVC Fiber Reinforced Hose,PVC Nylon Braided Hose Pipe, Reinforced Vinyl Tubing,Braiding PVC Hose
MaterialsNormal quality flexible PVC compound, FDA approved food grade PVC compound
ReinforcementPolyester fiber

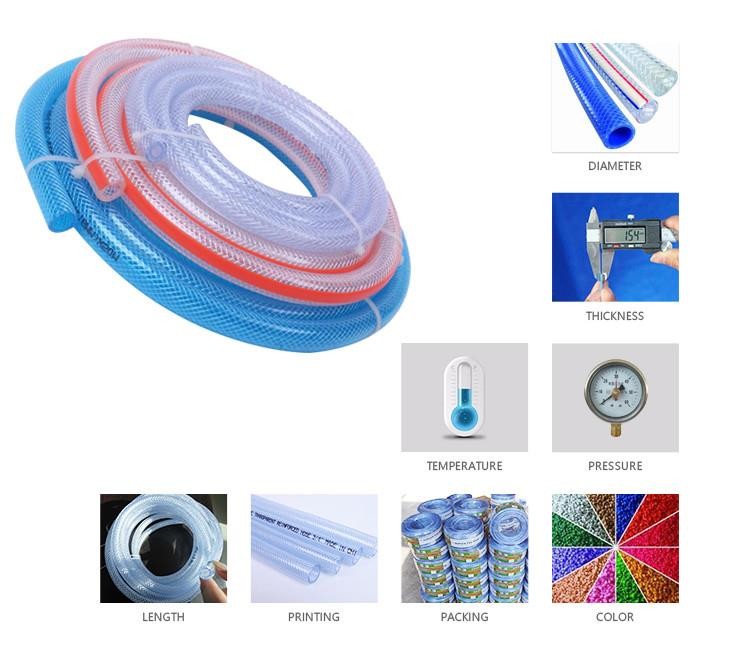

Color/Size/ThicknessAccording to clients' requirements

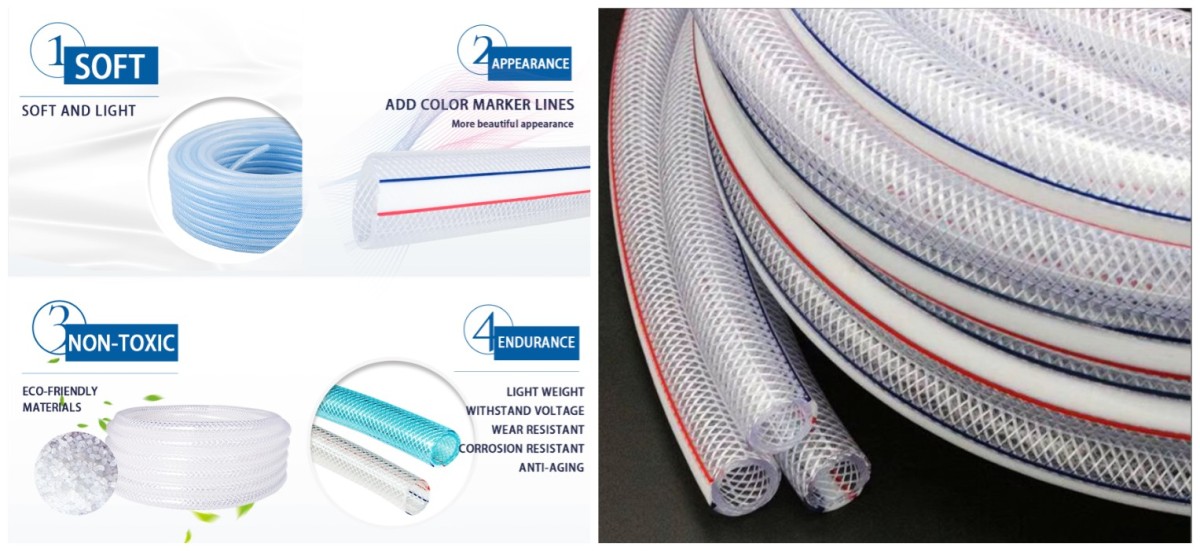

Characteristic- The tubing’s wall is thick enough to prevent kinking,you can easy to unfold and roll up.
The unique formula is more durable, anti-UV, anti-abrasion and resistant to fuel, alkali,
weak acid and alcohol than ordinary hoses in market and can withstand multiple uses stably.-
Very good chemical resistance, smooth internal and external wall, very good resistance to microbes, germs and microorganisms,
very good resistance to hydrolysis, good flexibility.-Available with various colors and markings.Achieving both flexibility and high pressure resistance, light weight.No tearing off by excessive pressure and stretch.
StandardISO9001:2000/ISO14001:2004
CertificateROHS,SGS,FDA
Length20m/30m/50m/100m or as requirement
ApplicationConveying liquid,air, gas,weak chemical or foodstuff
W.P.70-300PSI
B.P.210-900PSI

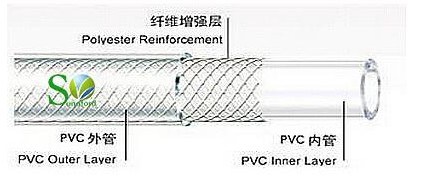

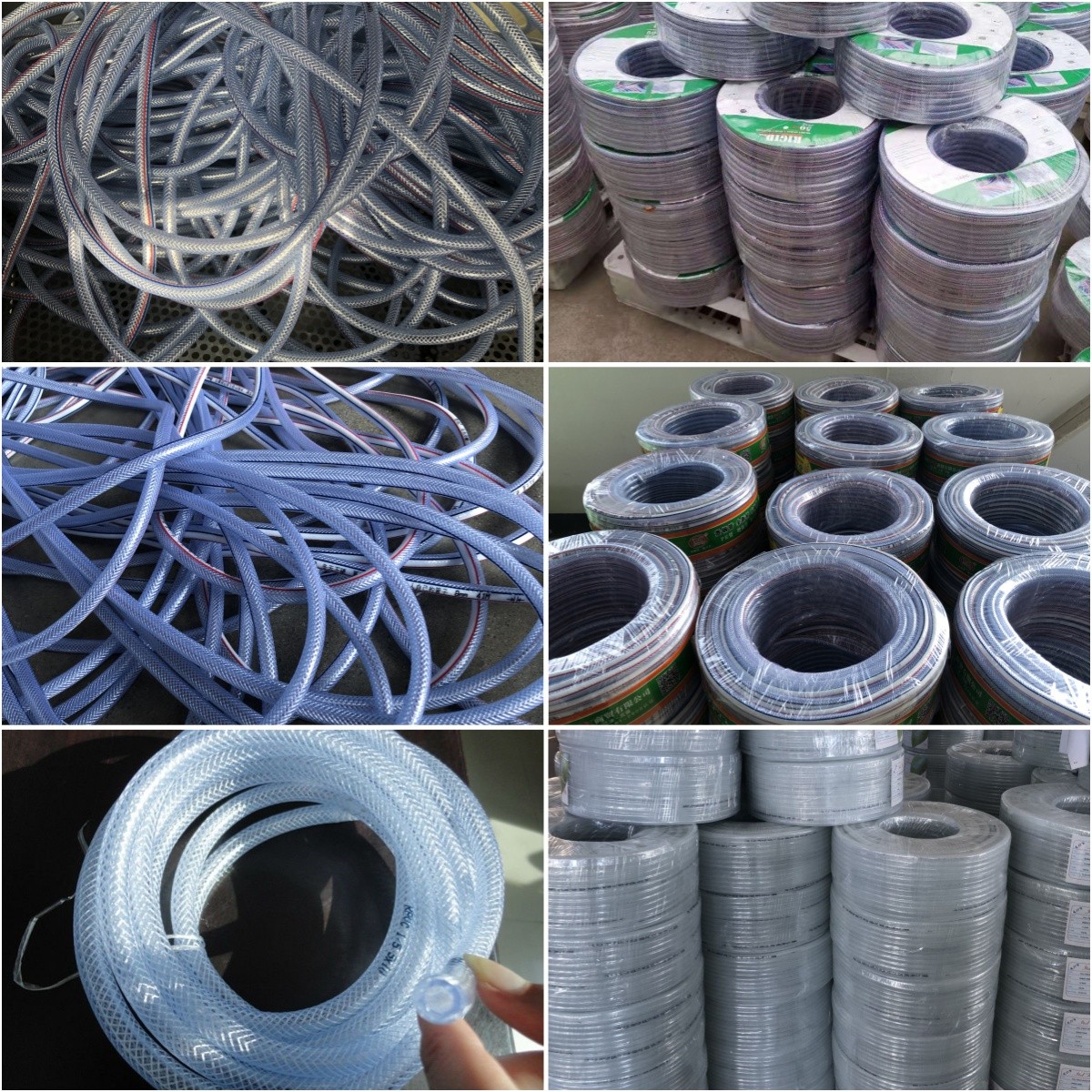

Product Construction


Tube and Cover: Pure new PVC
Reinforcement:high tensile polyester fiber
Smooth surface inside and outside.Vinyl tubing is clear for easy monitoring of fluid flow, smooth interior and exterior that prevents sediment accumulation and allows easy flow and flushing.



Specifications


Please note that the thickness in the table is only for reference. Any size and thickness (or weight kg/m) can be customized as requirement.


Inner DiameterWall ThicknessWeightW.P.(at 23ºC)Std Length
inchmminchmmkg/mbarpsimft
1/840.07820.05112175100300
13/6450.0982.50.07612175100300
1/460.0982.50.08712175100300
5/1680.0982.50.10510145100300
3/8100.0982.50.1310145100300
1/2120.11830.1859130100300
5/8160.1183 0.238116100300
3/4190.11830.27687100300
7/8220.11830.305573100300
1250.11830.34460100300
1-1/4320.15740.59460100300
1-/1/2380.15740.6946050150
1-3/4450.2175.51.1446050150
2500.23661.3846050150
2-1/2640.27672.0346050150
3760.63162.7546050150

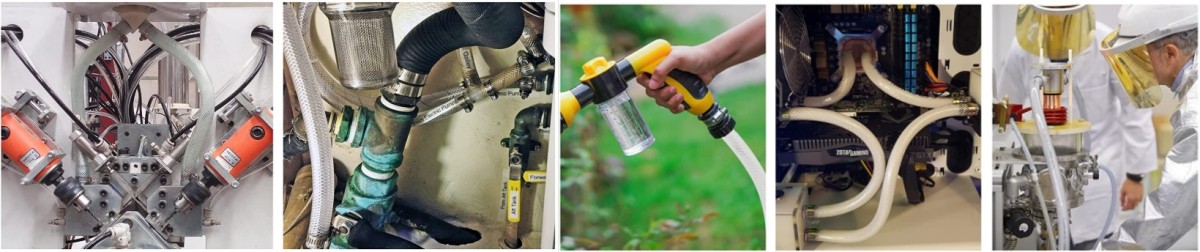

Applications


PVC fiber reinforced hose is widely used for conveying water,oil,gas under normal working condition in the factory,farm,ship,building and family. The hose used for foodstuffs is made of special food grade material,It can also be used for conveying milk,beverage,distilled liquor,beer, jam and other foods.It can be used as shower hose too. With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, PVC tubing is widely used in outside insulation protection, effectively packing your wires to prevent damage.



Production,Packing And Delivery

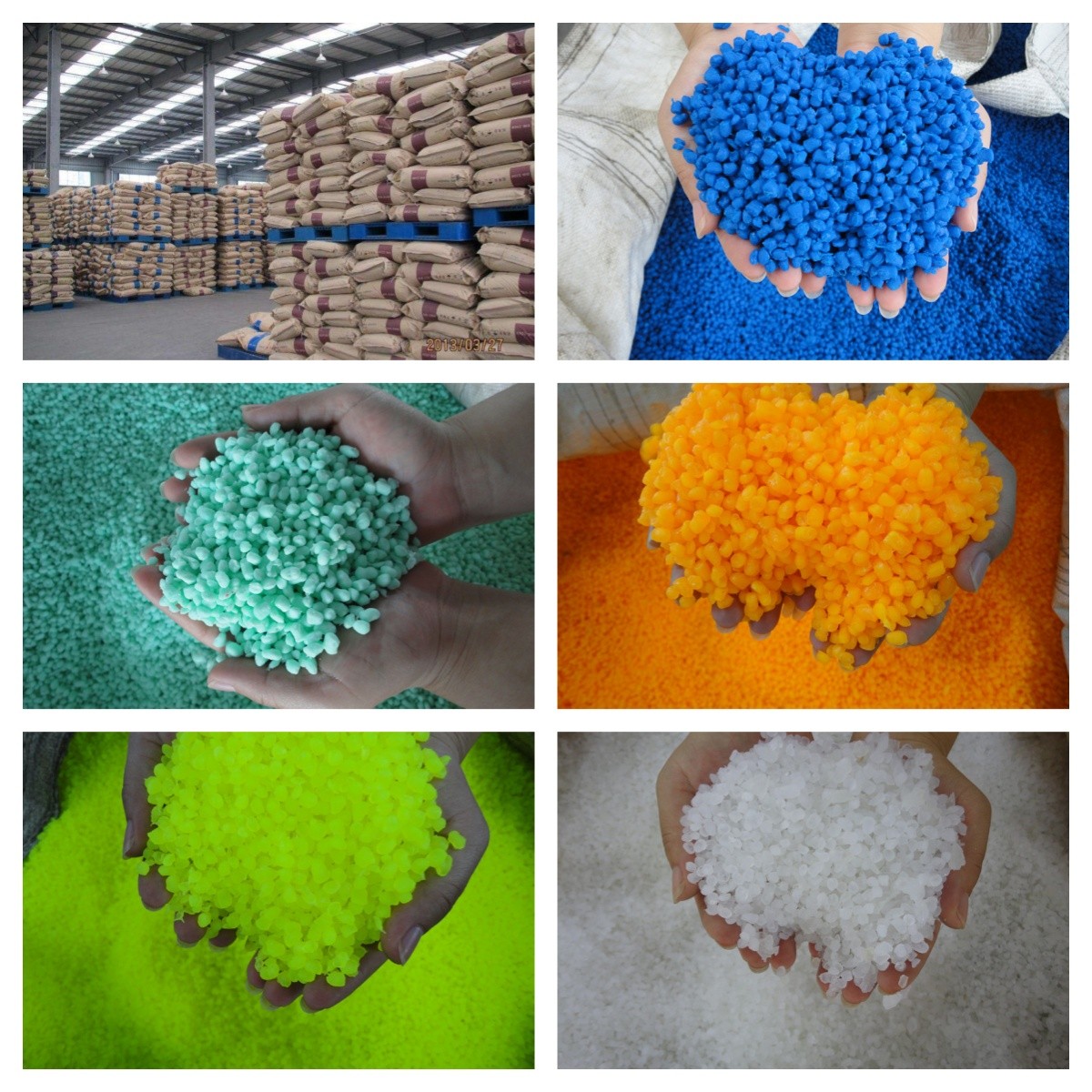

100% new original PVC materials, Never use recycle materials.

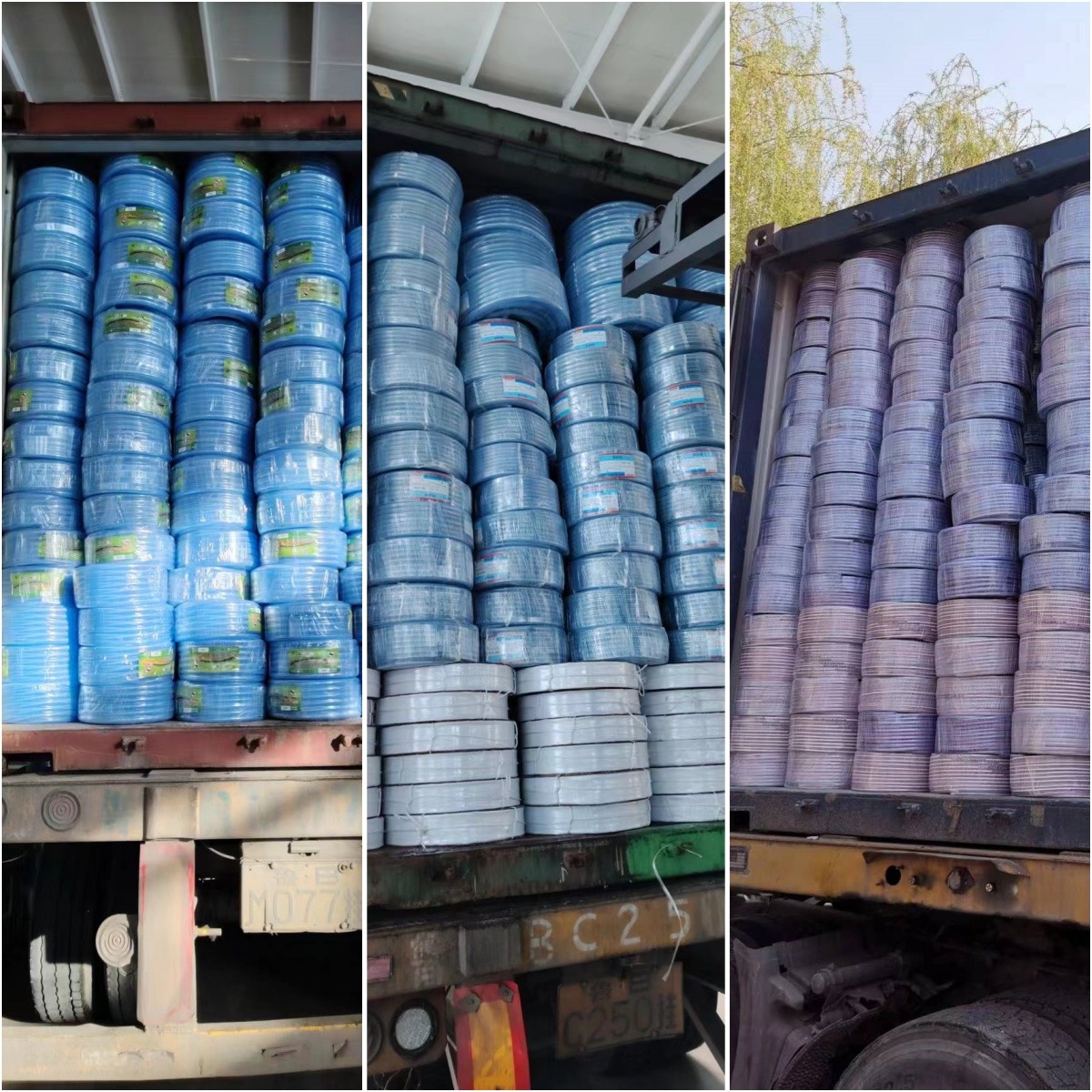

Normal packing plastic film or woven bag, special packing can be as per customer request.
The delivery time is about 15days for 20ft and 20days for 40HQ.
Samples are always available.
Port of loading: Qingdao

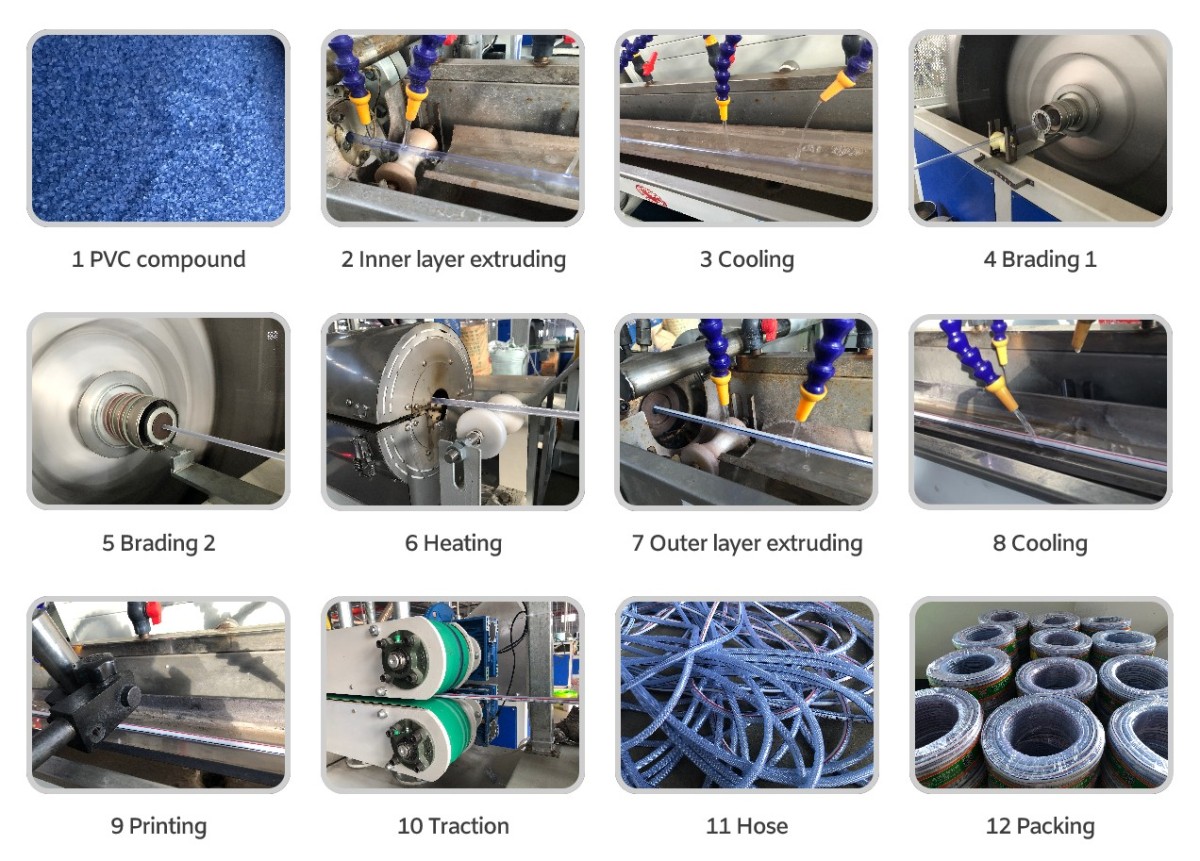

PVC Fiber Reinforced Hose Production Process

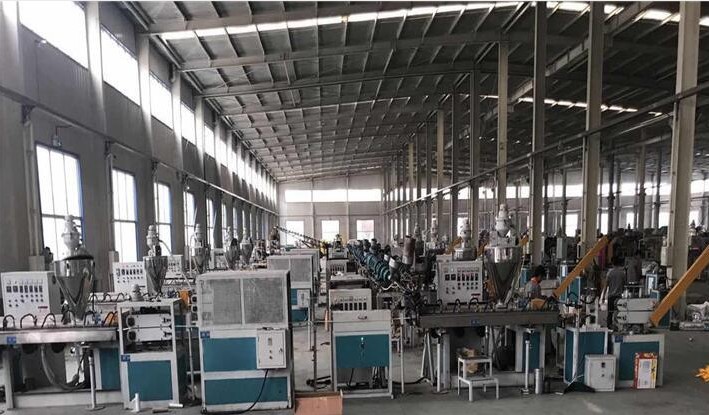

Sungford Plastic Strength


- Factory direct sale and export with competitive price.
- Top quality PVC hose production since the year 2005,export since 2008.
- OEM is popular for production, all the product can be customization.
- Various tests before shipping to make sure stable quality.
- More than 50 product lines make it very fast delivery time.
